Product Description:
This container house roll forming machine is designed for the production of container bottom frame beam. It features an Omron encoder for precise positioning control, hydraulic cutting for efficient cutting, PLC control system for high tolerance control. The forming speed can reach up to 20m/min with stable and reliable performance.
Features:
- Product Name: Container Roof Beam Roll Forming Machine
- Control System: PLC
- Forming Speed: 15m/min
- Cutting Tolerance: ±2mm
- Cutting Mode: Hydraulic Cutting
- Roller Material: Cr12, heat treatment, HRC58~62
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR CONTAINER ROOF BEAM |
| Material Specification |
| Thickness | 2.0mm-3.5mm |
| Material | GI |
| Yield strength | 345MPa |
| |
| Machine Components |
| 5Ton*600mm Simple Decoiler |
| Type | No power |
| Load capacity | Max.5Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.600mm |
| Coil outer-diameter | Max.1500mm |
| Option for Decoiler | 5Ton*600mm Hydraulic Decoiler |
| |
| Pre-leveling and Feed-in Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set, Manual control |
| |
| Hydraulic Pre-Notching Device |
| Notching mould material | Cr12Mov, heat treatment |
| Roll Forming Machine |
| Driving system | Gear/Sprocket driving |
| Wall plate thickness | 25mm |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ95mm |
| Motor to drive | 22KW×2 |
| Line speed of rollformer | Approx. 15m/min or customized |
| |

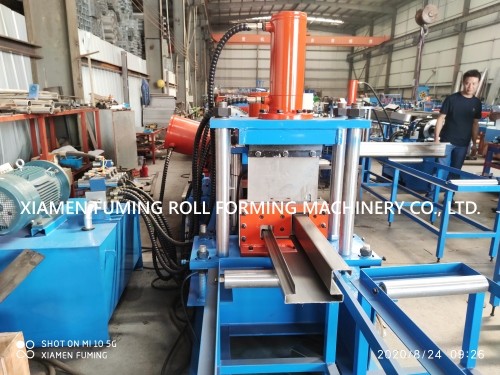

| Hydraulic Post Punching & Cutting Device |
| Punching & Cutting | Stop to punch, stop to cut |
| Cutting type | Slug breaker |
| Quntity of punching mould | One set |
| Quntity of cutting mould | One set |
| Punching & Cutting moulds material | Cr12Mov, heat treatment |
| Hydraulci pump motor | 15KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
| |
| Product Rack | 3 meters×2 |
Applications:
XIAMEN FUMING's Container House Roll Forming Machine is widely used in the production of container vertical post, container roof, container roof beam, container bottom beam, container bottom frame beam, container bottom frame purlin, container corner plate, container roof gutter, etc.
Support and Services:
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer inquiries.
- We provide preventive maintenance services to keep the machine running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roll Forming Machine, please don't hesitate to contact us. We are here to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
